BSD Cemented Tungsten Carbide Bur Blanks
Now the type of Rydmet Carbide Burr ranges through ANSI Standard and DIN Standard and has different carbide grades suitable for different purposes.
If necessary, our engineer will recommend the proper tungsten carbide grade as per different use.
We'd like to offer more specific technical data about our products.
BSD Cemented Tungsten Carbide Bur Blanks

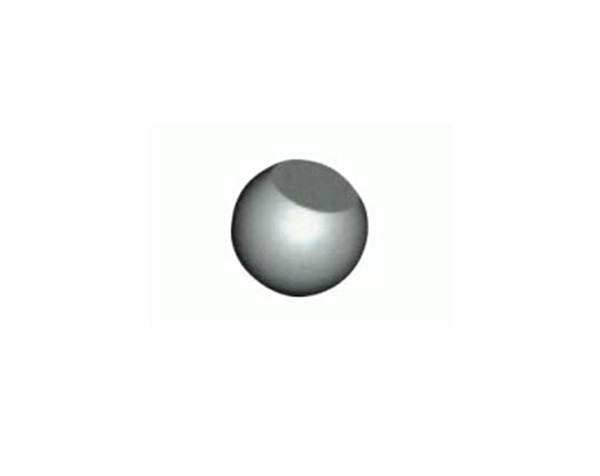

BSD Type Ball
| Part No. | A | B | ||
| NOMICAL | Actual | Nominal | Actual | |
| BSD-10 | 3/16 | 0.202 ± 0.005 | 0.168 | 0.152 ± 0.005 |
| BSD-1 | 1/4 | 0.265 ± 0.005 | 0.220 | 0.188 ± 0.005 |
| BSD-2 | 5/16 | 0.327 ± 0.005 | 0.276 | 0.226 ± 0.005 |
| BSD-3 | 3/8 | 0.390 ± 0.005 | 0.332 | 0.265 ± 0.005 |
| BSD-4 | 7/16 | 0.453 ± 0.005 | 0.392 | 0.297 ± 0.005 |
| BSD-5 | 1/2 | 0.515 ± 0.005 | 0.450 | 0.329 ± 0.005 |
| BSD-6 | 5/8 | 0.640 ± 0.005 | 0.568 | 0.390 ± 0.005 |
| BSD-7 | 3/4 | 0.767 ± 0.006 | 0.686 | 0.456 ± 0.005 |
| BSD-9 | 1 | 1.019 ± 0.007 | 0.924 | 0.578 ± 0.005 |
